Описание
| Pixel Pitch (mm) | 3.9 | 3.9 | 5.9 |
| Операционная среда | Outdoor&Indoor | Outdoor&Indoor | Outdoor&Indoor |

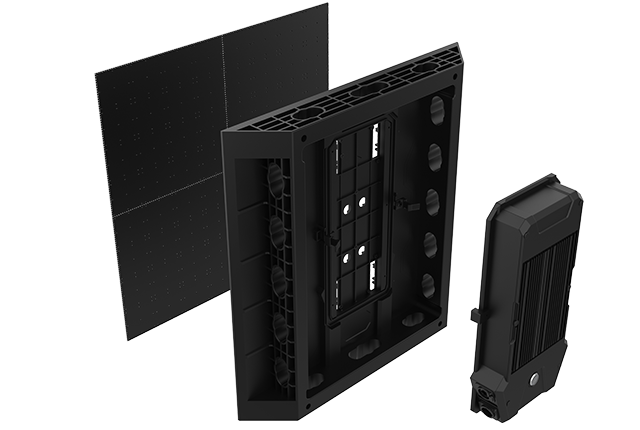

| Module Size (mm) | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500*73 | 500*500*73 | 500*500*73 |
| Cabinet Resolution (W×H) | 128*128 | 128*128 | 96*96 |
| IP Grade | FrontIP65 RearIP54 | FrontIP65 RearIP54 | FrontIP65 RearIP54 |
| Weight (kg/cabinet) | 6.6 | 5.9 | 5.8 |
| White Balance Brightness (nit) | 5000-5500 | 4000-4200 | 3000-3500 |
| Horizontal / Vertical Viewing Angle | 165/165 | 160/160 | 160/160 |
| Power Consumption(W/㎡) | 750±15%/280±15% | 550±15%/180±15% | 720±15%/240±15% |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova |
| Certification | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL |
